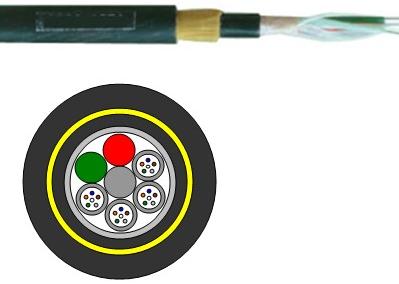

120114. ADSS, all dielectric self-supporting aeriel

Jelly compound,optical fiber cable with non-metallic strength member of FRP, Filling compound and PE inner sheath Amoured with Aramid yarns high strength

Detailed description

Description:

Loose tube style with a water-resistant
Jelly compound,optical fiber cable with non-metallic strength member of FRP
Filling compound and PE inner sheath Amoured with Aramid yarns
High strength, tracking-resistant sheath Two-layer sheath for excellent
Crush-resistant perfermance
Small diameter,light ,with 1500M span
Strong anti-tensile and over 90KN
Available under scurviness climate

Application:

Old and new electric power
Situation of large span
District with strong electric field and thunder
Long distance communication system

Mechanical & Environmental characteristics:

ITEM		CHARACTERISTICS
Tensile Load	Short term	meet with customers request
	Long term	meet with customers request
Crush Load	Short term	≥4000/10cm
	Long term	≥2000/10cm
Bend Radius	Short term	10 times cable diameter
	Long term	20 times cable diameter
Penetration Water		water block for full cross section
Operation temperature		-20℃~+60℃
Storage temperature		-40℃~+60℃
Sheath Material		P: PE; L: LSZH; or other

Part Number	Max allowable working tension	Outside Diameter (mm)	Min broken strength (KN)	Cable Weight (kg/km)	Suitable span (m)
Part Number	Max allowable working tension	Outside Diameter (mm)	Min broken strength (KN)	Cable Weight (kg/km)	Wind velocity 10m/s	Wind velocity 25m/s	Wind velocity 35m/s
ADSSXnXXP-4KN	4KN	12.5	10	125	140	160	100
ADSSXnXXP-6KN	6KN	12.5	15	132	200	230	150
ADSSXnXXP-10KN	10KN	13.6	24	145	350	370	250
ADSSXnXXP-12KN	12KN	13.8	30	147	400	420	280
ADSSXnXXP-15KN	15KN	14.5	36	164	460	480	320
ADSSXnXXP-18KN	18KN	14.9	45	171	550	570	380
ADSSXnXXP-22KN	22KN	15.1	53	179	650	670	460
ADSSXnXXP-26KN	26KN	15.5	60	190	750	750	530
ADSSXnXXP-28KN	28KN	15.6	470	194	800	800	560
ADSSXnXXP-34KN	34KN	16.3	85	211	880	880	650
ADSSXnXXP-41KN	41KN	16.8	103	226	1000	1000	750
ADSSXnXXP-45KN	45KN	17.2	108	236	1100	1100	800
ADSSXnXXP-50KN	50KN	17.9	125	249	1180	1180	880
ADSSXnXXP-XKN	XKN	-	-	-	-	-	-

Note: ADSS denotes all dielectric self-supporting aeriel cable ;XX denotes fiber type (09: SM; 62: 62.5/125um; 50: 50/125um) ; Xn denotes fiber count ;P denotes PE sheath( L: LSZH) ; 4KN denotes maximum allowable working tension 4 KN.

Optical Characteristics:

Glass Type	62.5/125um	62.5/125um	50/125um	50/125um	50/125um	SM(G652.D)
Glass Type	Grade B	Grade A	Grade B	Grade A	OM3	SM(G652.D)
P/N Code(X)	62B	62A	50B	50A	OM3	09
Operating Wavelength	850/1300nm	850/1300nm	850/1300nm	850/1300nm	850/1300nm	1310/1550nm
Bandwidth (MHz.km)	160/500	200/600	200/500	400/800	1500/500	_
Attenuation (dB/km)	3.50/1.50	3.00/1.00	3..50/1.50	3.00/1.00	2.70/0.80	0.45/0.30
Link Length For 1000M	200/500	275/550	500/550	550/550	1000^4/600	_
Link Length For 10G	——	——	——	——	300/	_

Fiber Colour Code:

BL- Blue	BR- Brown	RE- Red	PU- Purple
OR- Orange	GY- Grey	BK- Black	PI- Pink
GR- Green	WH- White	YE- Yellow	AQ- Aqua

Note:

1000

1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: short term; L: long term; L.T: loose tube
3. Crush load: N/100mm; D: cable diameter
