120305. Fiber Optic Distribution Frame GPX910-Yb Series
  • 120305. Fiber Optic Distribution Frame GPX910-Yb Series

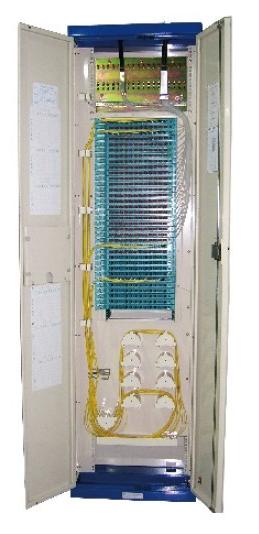

120305. Fiber Optic Distribution Frame GPX910-Yb Series

Best management solution for patch cord, reasonable routing and easy to find
Detailed description
Features
* Wall-mounting or back-to-back installation, all front operation
* Independent space for cables, pigtails and patch cords, noninterference
* Best management solution for patch cord, reasonable routing and easy to find
* Ensure the bending radius of fiber and cable is more than 40mm in any position
* Electrolytic plate structure
* Easier cable installation
* large-scale merging is available
* Modular structure, flexible operation for either splice or distribution unit
* Suitable for fiber optic ribbon cable as well
* 30 degree angle port ensures the bending radius of patch cord and protects eyes from laser

* Equipped with grounding device

Ordering Guide

NO. Type Dimension (mm) H*W*D Max Capacity (Fiber count)
1 GPX910-Y1b 2600x600x300 504
2 GPX910-Y2b 2200x600x300 360
3 GPX910-Y3b 2000x600x300 288
