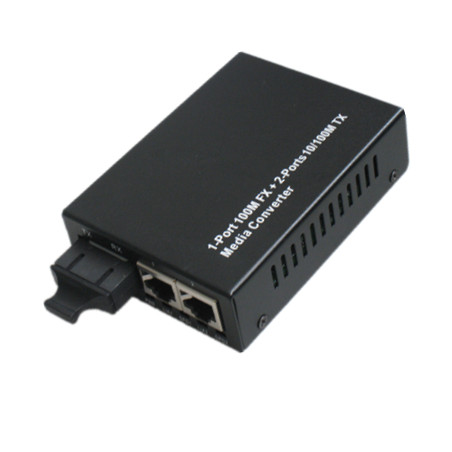

121010. 10/100M Dual Fiber Two RJ45 Media Converter
  • 121010. 10/100M Dual Fiber Two RJ45 Media Converter

121010. 10/100M Dual Fiber Two RJ45 Media Converter

It provides 2 10/100Mbps UTP/STP RJ45 ports with auto-MDI/MDIX and 1 fiber port. It also provides powerful functions such as supporting Web management, intelligent matching among working mode, port, VLAN, prority, data rate and security of the interface.
Detailed description
Description:
1 port 10/100M-T / 2 RJ45 100M-F Media Converter
10/100M-SM 2 multi RJ-45 ports media converter, an intelligent fiber optic facility with exchange function. Except of the functions of common media converter, it particular has 2 RJ45 ports, breach the restrict of one RJ-45port. It could be established VLAN within each RJ-45 port. Single fiber or double fiber optional.
Features
* 2 RJ-45 ports
* RJ-45 ports could connect with several facilities at the same time
* Power AC 220V or DC -48V optional
* Support duplex fiber with bi- directional
* Auto identify MDI/MDIX
* Full/half duplex negotiational
* Support100Base-Fx fiber transmit standard
Parameter
* Dimension 158mm× 97mm× 26mm(4RJ-45 port)
* Power (4RJ-45 port) Input: 220VAC or -48VDC; Output: DC 5V/1A
* Power wastage 5W
* Weight 1.2Kg(7RJ-45 port); 0.9Kg(4RJ-45 port);
* Working temperature -10ºC~70ºC
* Storage temperature -20ºC~80ºC
* Humidity 5%~95%(no-condensing)
Protocol
* IEEE802.3 Ethernet(10Mbps)
* IEEE802.1d Building tree protocol
* IEEE802.3u Quick ethernet (100Mbps)
* IEEE802.1Q VLAN
* IEEE802.1p QOS PRI
* IEEE802.3x Full duplex flux control
Ordering Information:
1)2 RJ-45 Media Converter
10/100M-MT4 Multi mode/2Km/850nm/1310nm
10/100M-SM4 Single mode /20Km/1310nm/1550nm.
