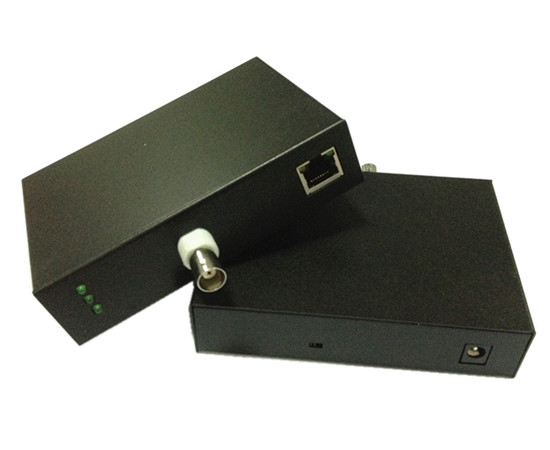

121501. PoE over Coax Extender For IP Camera

EOC Ethernet extender with POE, 10/100Mbps,200~300m
Detailed description
Description:
escription Nufiber DV801E-PSE/PD EOC solution is the high-performance Ethernet over Coaxial cable that converts between twisted pair(UTP)and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring On the UTP side.the DV801E-PSE/PD uses the standard of RJ-45 connector and existing Coaxial cable to the transmit IP signal up to 200~300meter. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signal.It can POE by the existing coaxial and network cable thus saving lots of costs. Features DV801E-PSE/PD BNC Ethernet extender Conforms to IEEE802.3i 10Base-T and IEEE802.3 low control LED indicator to display the current status Plug and play,without any configuration Used in pairs. Parameter Interface 10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1 BNC×1(Support POE/PSE-PD) Transmission medium RG59 coaxial cable LED Indicators PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet)  L/A(Links/Data)                Protocol standard IEEE 802.3i、IEEE 802.3u、IEEE 802.3x Flow Control、IEEE 802.3af DTE Power via MDI Data rate 10/100Mbps Transmission distance 1500M(No POE), 200~300M(with POE) Performance Specification Store-and-forward Network Latency Less than 20µs for 64-byte frames in Store and forwardmode for 100Mbps to 100Mbps transmission DC Power input DC 48V(Peak Value 44~56V) , DV801E-PSE No power, DV801E-PD AC power input AC 100~240V, 50/60Hz Operating environment Operating temperature; -10℃-50℃ Storage temperature: -20℃-70℃ Operating humidity: 10%-90% non-condensing Dimension 118*85*29mm Weight 0.45kg Connection diagram
