110806. CAT6A RJ45 8p8c UTP Unshielded 180 degree Krone Keystone Jack
  • 110806. CAT6A RJ45 8p8c UTP Unshielded 180 degree Krone Keystone Jack

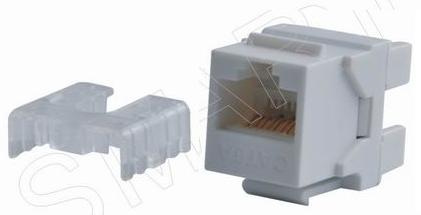

110806. CAT6A RJ45 8p8c UTP Unshielded 180 degree Krone Keystone Jack

CAT6A RJ45 8p8c UTP Unshielded 180 degree Krone Keystone Jack
Detailed description
CAT.6A RJ45 8p8c UTP Unshielded 180 degree Krone Keystone Jack

Features:

Housing: High-impact Flame Retardant Polycarbonate,UL94V-0
Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N

Package:
400PCS in a carton
Carton Measurement: L53CM*W32CM*H23
