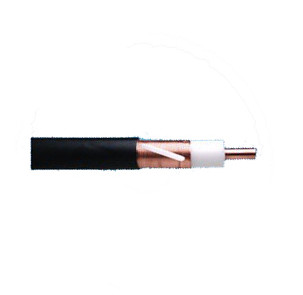

140507. HLCTAY(R)-50-32(1-1/4) RadiatingLeaky

HLCTAY(R)-50-32(1-1/4") RadiatingLeaky

Detailed description

Cable Structure
Inner conductor ø mm	13.1 Smooth CU tube
Insulation ø mm	32.8
Outer conductor ø mm (Overlapping CU foil )	33.2
Outer jacket mm	37.4
Mechanical characteristics
Maximum tension(N)	1550
Single bending radius(mm)	380
Storage temperature(°C)	–55 ～ +80°C
Installation temperature(°C)	–40 ～ +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz	50.0
Voltage standing-wave ratio
800-1000 MHz	1.15
1700-2200 MHz	1.20
Peak power(KW)	205.0
Cut-off frequency(Ghz)	3.7
Attenuation constant(dB/100m)
150 MHz	1.30
450 MHz	3.00
900 MHz	4.30
1800 MHz	5.60
2200 MHz	6.20
2400 MHz	6.90
Coupling Loss(50%/95%,2m)
150 MHz	70/82
450 MHz	73/85
900 MHz	70/82
1800 MHz	62/69
2200 MHz	66/70
2400 MHz	63/69
