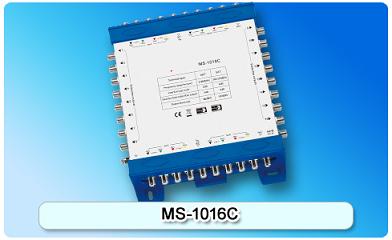

150670. MS-1016C Cascadable Multiswitch of 10 in 16, 10 In Series

C means Cascade type, E means End type. Power supplied by satellite receiver and external power supply. 9 SAT inputs + 1 ANT input, 16 output. Cascade type support 9SAT + 1ANT connect with next stage. SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands.

Detailed description

Features:

C means Cascade type, E means End type.
Power supplied by satellite receiver and external power supply.
9 SAT inputs + 1 ANT input, 16 output. Cascade type
support 9SAT + 1ANT connect with next stage.
SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands.

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150(MHz)	Return Loss ANT Input	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Outputs	8(dB)
Insertion Loss SAT	4(dB)	Output Level ANT	88(dBuV)
Insertion Loss Trunk(for cascadable type)	ANT.: 5(dB) SAT.: 6(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	200(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V(±1)2000mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Cross Isolation(for cascadable type)	25(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0，2.0
Connectors:“F” type female
