150806. GS01-08 SAT 8-Way Splitter
  • 150806. GS01-08 SAT 8-Way Splitter

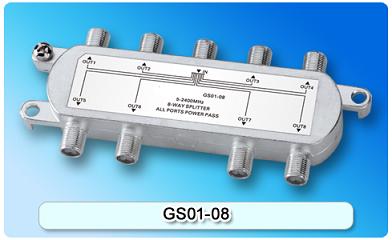

150806. GS01-08 SAT 8-Way Splitter

Zinc die-cast housing, tin-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-2400MHz≥100dB; Low insertion loss, high isolation, perfect performance index; Designed for SATV/CATV.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Light weight and compact size
  • Easy installation with two edge hole sites
  • Screening factor: 5-2400MHz≥100dB
  • Low insertion loss, high isolation, perfect performance index
  • Designed for SATV/CATV
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f)connector,75Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤12.0

≥20

≥10

40-1000

≤12.5

≥20

≥12

1000-1750

≤14.5

≥20

≥12

1750-2400

≤16.0

≥20

≥10
