150913. A07-20 In-line Amplifier
  • 150913. A07-20 In-line Amplifier

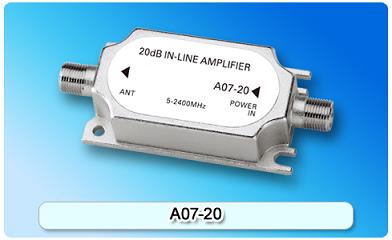

150913. A07-20 In-line Amplifier

Zinc die-cast housing,nickel-plated; Power supply:15±3VDC; Frequency Range:5-2400MHz; Power supplied from satellite receiver through coaxial cable; DC power psaaing: 500mA (MAX.).
Detailed description

Features:

  • Zinc die-cast housing,nickel-plated
  • Power supply:15±3VDC
  • Frequency Range:5-2400MHz
  • Power supplied from satellite receiver through coaxial cable
  • DC power psaaing: 500mA (MAX.)

Specifications

Item

Frequency Range (MHz)

Gain (dB)

Return Loss (dB)

IN-OUT

5-950

20.0±1.0

≥12.0

950-2400

20.0±1.5
