130303. Fire resistant cable LSZH EN 50200 PH 90-120-180

Fire resistant LSZH (low smoke zero halogen) cables suitable for fire alarm systems and emergency lighting circuits. Fire tests: EN 50200 PH60-90-120
Detailed description

STANDARD USE: Power or control cables for fixed installation, in dry and damp environments, in crowded areas with danger of fire (i.e. theaters, banks, stores, shops, multi-storey buildings, schools, hotels, airports, hospitals, etc.) where harm to human life and damage to property must be prevented.

FTECHNICAL FEATURES

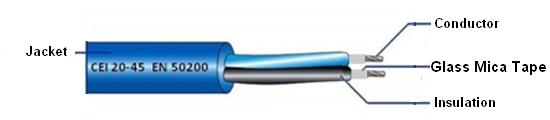

CONDUCTORS
Stranded bare or tinned copper conductors
CEI 20-29 cl.5, EN 60228, IEC 60228 ref.
INSULATION
Glass-Mica tape and halogen free crosslinked compound
CEI 20-11 quality G10, VDE 0207/23 HJ1
Colour code: CEI UNEL 00722, VDE 0293
JACKET
Special halogen free compound
CEI 20-11 quality M1, VDE 0207 HM2
Colour: Blue or on request
WORKING TEMPERATURE
-20°C + 90°C
BENDING RADIUS
15 times overall diameter of cable
WORKING VOLTAGE
0,6/1 kV
TEST VOLTAGE
4000 V
FIRE RESISTANCE TEST
CEI 20-36/4-0 PH 90, PH 120, PH 180
CEI EN 50200 PH 90, PH 120, PH 180
FLAME RETARDANT TEST
CEI 20-22 III, IEC 60332.3 cat. C/D
CEI 20-35, IEC 60332.1
NON-HALOGEN VERIFICATION
< 0,5 % (CEI 20-37/2-1, CEI EN 50267-2-1, IEC 60754-1)
CORROSIVITY OF COMBUSTION GASES
pH: > 4,3
Conductivity: < 10 μS/mm
(CEI 20-37/2-2, CEI EN 50267-2-2, IEC 60754-2)

SMOKE DENSITY
Transmission of light: > 60% (CEI 20-37/3-1)
TOXICITY INDEX
< 2 (CEI 20-37/7)
