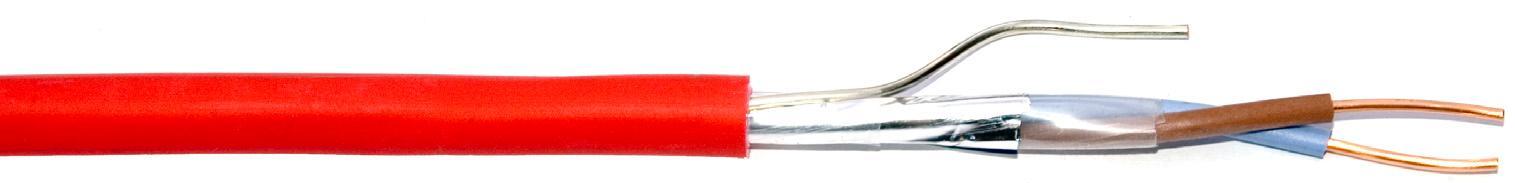

130304. Fire resistant cable Silicon Rubber Insulation PH30 BS6387

Special compound silicone and rubber mix Insulation . Complied with BS 7629-1, BS 6387 CWZ, BS 5839-1 clause 26.2 BS EN 50200 PH30, BS 8434-1

Detailed description

Description:

Fire Resistant Cable complied with BS6387CWZ, EN50200 PH30
2 or 4 core Solid bare copper conductor,
Special compound silicone and rubber mix insulation,
Aluminum foil, Tinned copper wire Screen ,
LSZH (Low Smoke Zero Halogen) Sheath
Complied with BS 7629-1, BS 6387 CWZ, BS 5839-1 clause 26.2, BS EN 50200 PH30, BS 8434-1standard
For fixed installation typically in fire alarm and emergency lighting circuits where circuit integrity must be maintained. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Physical & Mechanical characteristics:

Physical Characteristics
Conductor	class 1 solid plain copper conductors
Insulation	Special compound silicone and rubber mix
Filler	Alkali-free Glass Fiber
Screen	Separator	PET
	Drain Wire	Solid Tinned Copper
	Shield	CAM (Collective Aluminum Mylar)
Sheath	Material	LSZH (Low Smoke Zero Halogen)
Sheath	Color	Red or White
Core Identification	2 Cores: Brown, Blue 4 Cores: Blue, Brown, Black, Grey
Mechanical Characteristics
Temperature Ration		-30℃ to +70℃
Minimum Bending Radius		6 x overall diameter
Electrical Characteristics
Voltage		300/500V
Dimension
No.of Cores x Cross Sectional ( mm2)	Thickness of Insulation(mm)	Thickness of Sheath(mm)	Overall Diameter(mm)	Weight (kg/Km)
2 x 1.0	0.7	1.2	7.10	76
2 x 1.5	0.7	1.4	8.10	100
2 x 2.5	0.8	1.4	9.10	140
2 x 4.0	0.9	1.5	12.0	226
4 x 1.0	0.7	1.4	9.00	121
4 x 1.5	0.7	1.4	9.10	150
4 x 2.5	0.8	1.5	11.0	222
4 x 4.0	0.9	1.7	14.0	366
