Features
1. 1/3"Sony Super HAD CCD

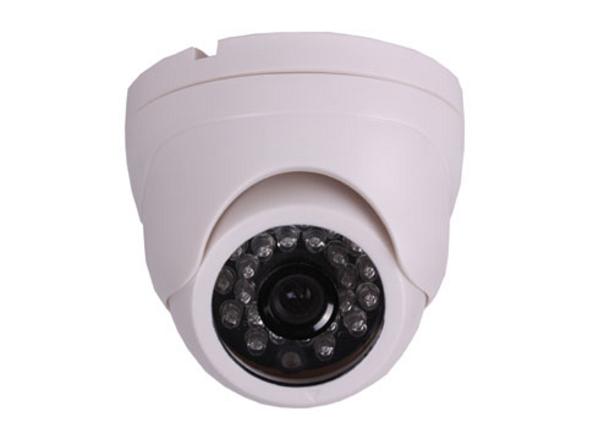

2. Vandalproof dome camera
3. Perfect choice for the lift, shops and home, etc.
4. Low current circuit design, vandalproof design with aluminum alloy
Parameters
Model | DF-312SR | DF-313RN | DF-314RN |
Image Sensor | 1/4”SHARP CCD | 1/3"Sony Super HAD CCD | |
Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) | P:500(H) ×582(V) N:510(H) ×492(V) | P:752(H) ×582(V) N:768(H) ×494(V) |
Scanning System | PAL/NTSC | ||
Horizontal Resolution | 420 TVL | 480 TVL | |
Synchronization | Internal | ||
Minimum Illumination | 0LuxF1.2(IR LED ON) | ||
Backlight Compensation | Automatic | ||
Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
White Balaance | Automatic | ||
Lens | Standard Lens 3.6mm(6mm Optional) | ||
IR LED | Ø5×30PCS | ||
IR Wavelength | 850nm | ||
IR Viewing Range | 15~20m | ||
S/N Ratio | ≥48dB | ||
Gamma Correction | 0.45 | ||
Video Output | 1.0Vp-p/ 75Ω | ||
Operation Temperature | -20℃~50℃ | ||
Power Supply | DC 12V 1,000mA | ||
Dimensions (mm) | Ø94×80mm | ||
Weight (g) | 187g |
