130612. Varifocal IR Dome Camera

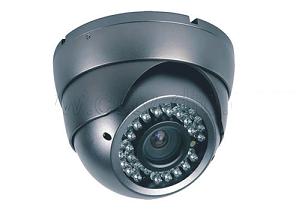

Varifocal IR Dome Camera
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. Vandalproof dome camera
3. Perfect choice for the lift, shops and home, etc.
4. Low current circuit design, vandalproof design with aluminum alloy
Parameters
| Model | DF-365RN |
| Image Sensor | 1/3"Sony Super HAD CCD |
| Pixels(H×V) | P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL/NTSC |
| Horizontal Resolution | 540 TVL |
| Synchronization | Internal |
| Minimum Illumination | 0LuxF1.2(IR LED ON) |
| Backlight Compensation | Automatic |
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. |
| White Balance | Automatic |
| Lens | 4mm~9mm |
| IR LED | Ø5×36PCS |
| IR Wavelength | 850nm |
| IR Viewing Range | 30m |
| S/N Ratio | ≥48dB |
| Gamma Correction | 0.45 |
| Video Output | 1.0Vp-p/ 75Ω |
| Operation Temperature | -20℃~50℃ |
| Power Supply | DC 12V 1,000mA |
| Dimensions (mm) | Ø139×102mm |
| Weight (g) | 680g |
