Features

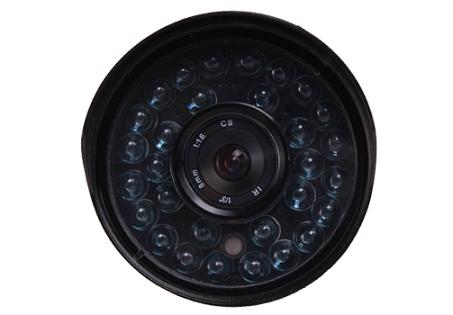

1. 1/3" Sony Super HAD CCD
2. 480 TVL
3. 8mm standard lens
4. Φ8×30PCS IR LED
5. 50m IR distance
Parameters
Model | DF-931RP | DF-932RN | DF-934RN |
Image Sensor | 1/4" Sharp CCD | 1/3"Sony Super HAD CCD | |
Pixels(H×V) |
P:512(H) ×582(V) N:512(H) ×492(V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
Scanning System | PAL/NTSC | ||
Horizontal Resolution | 420 TVL | 480TVL | |
Synchronization | Internal | ||
Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
Backlight Compensation | Automatic | ||
Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
White Balance | Automatic | ||
Lens | Standard Lens 8mm(6mm Optional) | ||
IR LED | Ø8×30PCS | ||
IR Wavelength | 850nm | ||
IR Viewing Range | 50m | ||
S/N Ratio | ≥48db | ||
Gamma Correction | 0.45 | ||
Video Output | 1.0Vp-p/75Ω | ||
Operation Temperature | ‘-20~55℃ | ||
Power Supply | DC 12V,1,000mA | ||
Dimensions (mm) | 140×85×85mm | ||
Weight (g) | 645g | ||
IP Grade | IP 66 |
