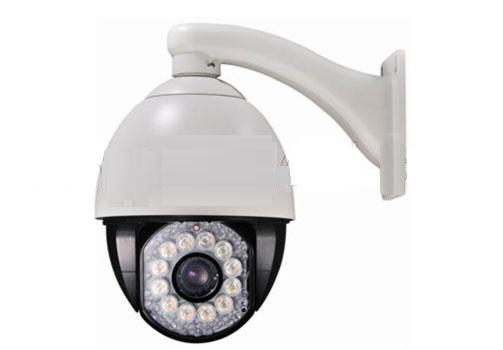

130902. 22X Zome Medium Speed Camera

22X Zome Medium Speed Camera

Detailed description

Features

◆ 1/4" Interline Transfer CCD

◆ Horizontal Resolution: 540TVL

◆ Conmunication methed: RS485

◆ Presets Points: 128 Positions

◆ IR Leds: 12Pcs Array IR Leds + 48pcs F8 IR Leds

◆ 120 IR Distance

◆ ZOOM: 22X

Parameters

Model NO.	DF-1848RS
Horizontal Resolution	540TVL
ZOOM	22X
Power Supply	DC12V±0.5V/5A
Operation Temperature	Indoor: 0℃～+40℃ Outdoor:－40℃～+60℃
Relative Humidity	≤95% No Condensation
Power Consumption	≤20W
Conmunication methed	RS485
Protocol	RPWT, PELCO-D/PELCO-P Automatic Recognition
Baud Rate of Communication	1200/2400/4800/9600bps
Pan Speed	0.1°～300°/Sec. (1-64 Ranges)
Pan Movement	360°
Tilt Movement	90°
Automatical Match of Speed and focal Length	The dome camera can automatically adjust the speed based on the current focal length
Automatically IR ON and OFF	Automatically adjust the IR distance based on the current focal length
Scan Between A-B Points	Set Random
Scan Speed	1-64 Ranges
Preset Dwell Time	1-60 Seconds Random
Presets Points	128 Positions
Preset Speed Setting	1-64 Rages Random
Patrol Track	8 Groups
Preset of Patrol Track Group	16 Positions
Memory of Track	1
Auotomatically Regression	1-255 Seconds Random
Track Dwell Time	88 seconds
Privacy Masking Zone	2 Zones
Fan and Heater	Automatically Temperature Control
IR Leds	12Pcs Array IR Leds + 48pcs F8 IR Leds
