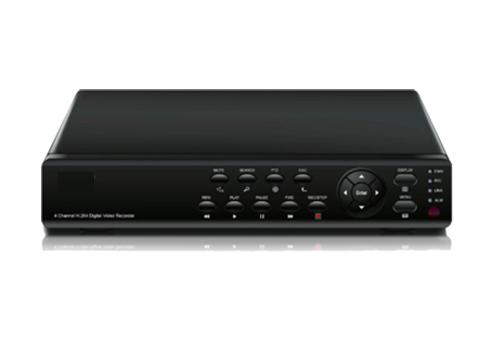

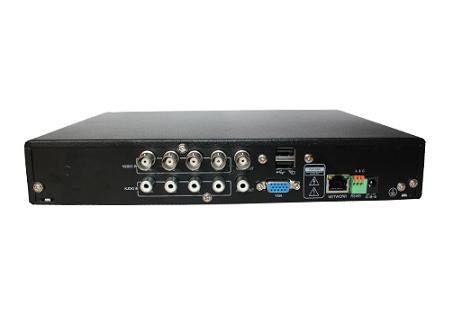

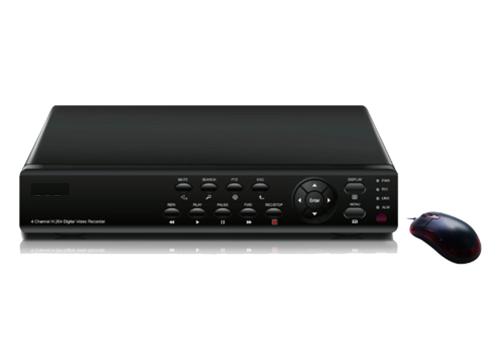

131101. 4CH Stand Alone DVR

4CH Stand Alone DVR

Detailed description

Features

1. H.264 / Real-time Recording / Video & Audio Synchronization / Superior Image
2. Support mobile phone live view via GPRS/CDMA/EDGE/3G/WIFI net
3. Support USB, PTZ, Audio, Network, VGA, HDMI, Sata, Alarm.
4. Dual-core CPU; Steady System Function
5. Playback, video, network transmission, mobile browsing, and backup etc. work simultaneously.
6. Local multi-screen real-time preview, settings, backup and playback video through IE.

Parameters

Video Compression Format	H.264
Video System	NTSC / PAL Adjustable
Video Input	4ch video input
Video Output	1ch BNC output, 1ch VGA output
Audio	4ch audio input, 1ch audio output	Without Audio
Alarm	4ch Alarm Output
USB 2.0	USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD
PTZ Interface	Built-in RS-485 Port
PTZ Control	PELCO-P / PELCO-D Protocol, Local / PC / Mobile Phone Control
Network Interface	RJ-45 10M/100M
Network Protocol	TCP/IP, UDP, SMTP, DHCP, DNNS, PPPoE
Network Function	IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Mobile Software	Symbian / Windows Mobile / Iphone / Blackberry
Mobile Function	1 Channel Viewer / Channel Switch / Control PTZ
Backup	Flash Disk / Removable HDD / USB/SATA CD/DVD/RW, Network
HDD Capability	2TB HDD at max
Working Temperature	10°C - +40°C
Working Humidity	10% - 90%
Language	Multi-Language
OSD Menu	Support
DVR -RW	Internal
IR Remote / Mouse	Included
Power Supply	DC12V / 5A
Dimension	230(L)354(W)45(H)
