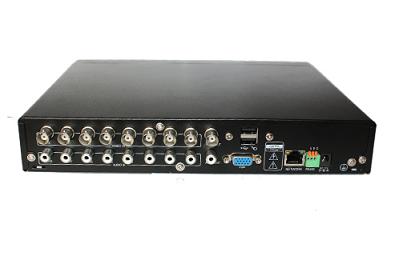

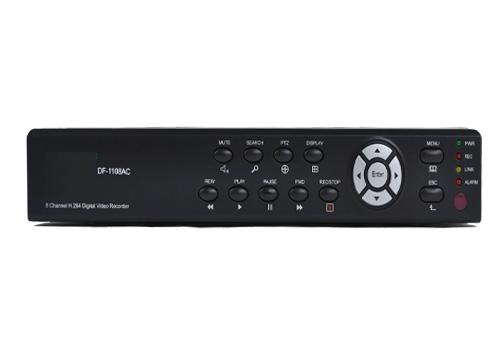

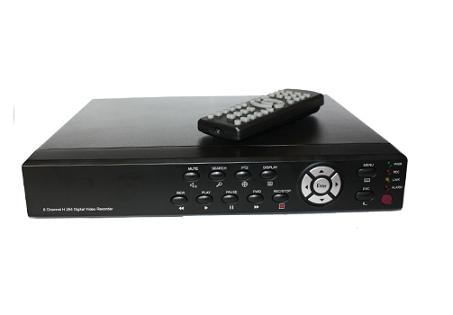

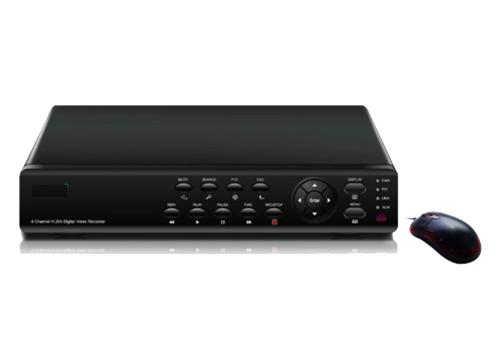

131103. 16CH D1 Network DVR

16CH D1 Network DVR
Detailed description

Features

1. H.264 / Real-time Recording / Video & Audio Synchronization / Superior Image

2. Support mobile phone live view via GPRS/CDMA/EDGE/3G/WIFI net

3. Support USB, PTZ, Audio, Network, VGA, HDMI, Sata, Alarm.

4. Dual-core CPU; Steady System Function

5. Playback, video, network transmission, mobile browsing, and backup etc. work simultaneously.

6. Local multi-screen real-time preview, settings, backup and playback video through IE.


Parameters

Video Compression Format H.264
Video System  NTSC / PAL Adjustable
Video Input 16ch video input
Video Output 1ch BNC output, 1ch VGA output
Audio
Alarm   16ch Alarm Input, 4ch Alarm Output
USB 2.0 USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD
PTZ Interface Built-in RS-485 Port
PTZ Control PELCO-P / PELCO-D Protocol, Local / PC / Mobile Phone Control
Network Interface RJ-45 10M/100M
Network Protocol TCP/IP, UDP, SMTP, DHCP, DNNS, PPPoE
Network Function IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Mobile Software Symbian / Windows Mobile / Iphone / Blackberry
Mobile Function 1 Channel Viewer / Channel Switch / Control PTZ
Backup Flash Disk / Removable HDD / USB/SATA CD/DVD/RW, Network
HDD Capability 2TB HDD at max
Language Multi-language
OSD Menu Support
Working Temperature 10°C - +40°C
Working Humidity 10% - 90%
DVR -RW Internal
IR Remote / Mouse  Included
Power Supply  DC12V / 5A
Dimension (mm) 250(L)*360(W)*66(H)
