131305. Paradox wired alarm systems 728

Paradox wired alarm systems 728

Detailed description

Paradox wired alarm systems

1. Different programmable settings, such as alarm sounds, zone types, recording, remote controlling, telephone number, phone line Check, and etc

2. Single zone ARM and DISARM

3. Connect 4 keypads at most

4.Automatically dials alarm center users mobile phone or telephone with audible alarm while emergency happens

5 .6 groups of phone number and 2 groups alarm center phone number could be set. When the alarm activated, it could repeat dialing the numbers

6. High speed digital communication, compatible ADEMCO4+1, CID digital communication protocol

7.Anti-tamper of the control panel and keypad, anti-snipping of keypad communication line

8. Restore user's password to factory defaults by hardware and restore the system factory defaults by software

9. Built-in voice module, 10seconds record, voice alarm function

Record 100 latest alarm events

10. Malfunction alarm: AC power fail, low voltage and telephone line loss

Technical Specification :

Power Supply :AC220V±10

Static Current: ≤120mA

Power: <1.5W

Alarm Output: 12V 500mA

Output Voltage: DC12V~15V

Operating Temperature: -10~ 55 C

Operating Humidity: 40~70%

Dimension: 274mm×264mm×86mm

Keyboard Dimension: 159mm×138mm×33mm

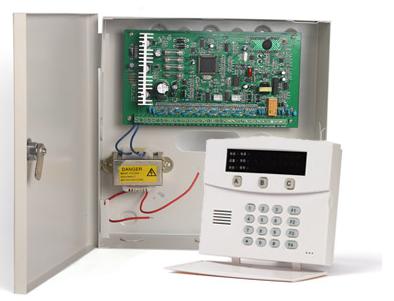

Factory configuration: Metal box +transformer + main board + Keypad

Package :

QTY.: 6 PCS

N.W.: 20 KGS

G.W.: 22.8 KGS

SIZE: 58Х34Х32 CM

Unit weight: 3KG each
