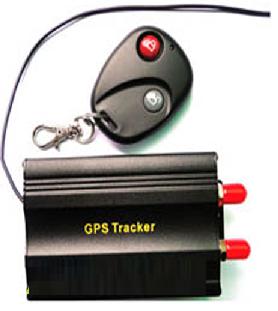

GSM/GPRS/GPS Tracker Professional for Vehicle GPS103-B
Detailed description
GSM/GPRS/GPS Tracker Professional for Vehicle TK-103B

model:GPS103-B

GPS Tracker,which set multiple functions of accurately positioning,security, monitoring surveillance, emergency alarms and tracking in its entirety,special for vehicle.
The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.

Detailed description:
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by several ways.provide monitor software and global map.real-time track through the monitor software in your pc;track through your PDA cell phone and googleearth.

Features and functions
◆Small cubage,dimension:83mm*54mm*26mm,weight:120g,easy to hide.
◆Support orientation without orientated server: it can find out Real-time      longitude and latitude, time and speed. By using public map software and    entering longitude and latitude manually, you can find out the real-time information of position.
◆If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.

◆Get location in real street/address name
◆Remote Engine-stop and Resume
◆Active and deactive DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
◆tracking function by timing and frequency
◆Remote reset by sms & reset button on the device
◆Input Power: 12V-24V DC
◆GSM/GPS LED indicator
◆Authorized number added and deleted function
◆Support hidden alarm and monitor function
◆Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
◆Power supply disconnection alarm.
◆Door alarm
◆ACC alarm
◆Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
◆Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
◆Low battery alarm function
◆Check the vehicle status

Optional functions:
◆Quiver alarm
◆siren/horn

Applying directions:
 Vehicle fleet/logistics/Vehicle rental


Technology parameter:
◆GPS chip: SIRF3chip
◆GPS sensitivity:   -159dBm
◆GPS accuracy :5m
◆Time To First Fix   Cold status 45s,Warm status 35s,Hot status 1s


And there is 4 tracking solutions:
◆SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
◆Get absolute address by SMS
◆PC Installation software tracking.
◆Web server online tracking www.gpstrackerxy.com

Standard kits :
1 pcs GPS Car Tracker TK-103;
 1 pcs GPS Antenna;
 1 pcs GSM Antenna;
 1 pcs Harness;
 1 pcs Relay;
 1 pcs Remote Control;
 1 pcs User Manual
