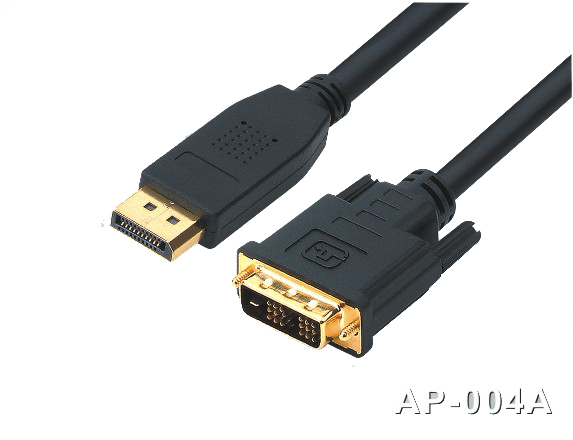

161004. Display port male (20 pin) to DVI male

Display port male (20 pin) to DVI male
DVI-D output
Passive Cable
Support conversion from DisplayPort signal to DVI
Support display port connector 20 pin

Specs & Features

This is a DisplayPort to DVI Cable for interfacing next generation DisplayPort based PC and notebook computers with conventional DVI displays, such as CRT, LCD monitors, and projectors.

• DisplayPort v1.1 Compliant.
• Enable high quality optional digital audio transmissions.
• Embedded clock architecture to reduce EMI susceptibility.
• Support greater then QXGA (2048 x 1536) resolution at 24-bit color depths.
• Support hot plug and un-plug detection as well as link status-failure detection.
• Support reduced bandwidth transmission via direct drive over a 15 meter cable.
• Supports a minimum of 1080P resolution at 24bpp 50/60 Hz at 15 meters.
• Support Displayport connector 20 pin.
• Support 8-bit & 10-bit Deep Color.
• Support the video Banwidth up to 10.8Gpbs.
• Support the 1Mbps'bidirectional auxiliary channel.
• Support the one lane one direction four-line connection.
