Description:
|
|
|

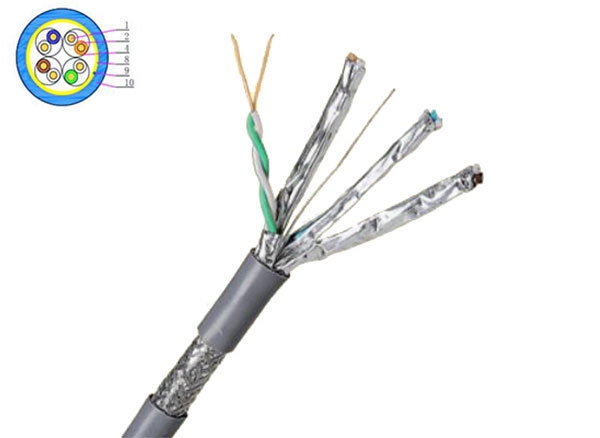

Shielded Copper cable, 4 pairs, category 6A, solid
4 separately foil-shielded pairs
General shield: wire braid
Cable is used for indoor installation
|
|
|
|
|
Specifications:
|
|
|
complied with EN50173, ANSI/TIA-568.2-D, ISO/IEC11801
|
|
|
|
|
Technical characteristics:
|
|
|
Conductor Material: Bare Copper
Insulation Material: Skin-foam-skin PE
Conductor Size: 23 AWG
Outer Jacket Material: LSZH(CPR-Eca, Dca, Cca, B2ca)
Outer Diameter: 7.5±0.3 mm
Ind. Shield Material: Aluminum/Polyester Foil
Ind. Shield Design: 100% Coverage
Overall Shield Design: 100% Coverage
Overall Shield Material: Aluminum/Polyester Foil
Overall Drain-wire Material: Tinned Copper
Overall Drain-wire size: 0.40mm
Overall Drain-wire Construction: Solid
Conductor Construction: Solid
Shield: every pair is separately shielded with polyester aluminum foil (foil is on the outside), which covers 100% of twisted pair
Braiding shield: 40%AM/40%TC
Standard package: 305m/500m
|
|
|
|
|
Electrical characteristics
|
|
|
|
Frequency, MHz
|
RL
|
Attenuation, dB
|
NEXT, dB
|
PSNEXT, dB
|
ELFEXT, dB
|
PSELFEXT, dB
|
|
1
|
20.0
|
2.0
|
74.3
|
72.3
|
68.0
|
65.0
|
|
4
|
23.0
|
3.8
|
65.3
|
63.3
|
56.0
|
53.0
|
|
8
|
24.5
|
5.3
|
60.8
|
48.8
|
49.9
|
46.9
|
|
10
|
25.0
|
5.9
|
59.3
|
57.3
|
48.0
|
45.0
|
|
16
|
25.0
|
7.5
|
56.2
|
54.2
|
43.9
|
40.9
|
|
20
|
25.0
|
8.4
|
54.8
|
52.8
|
42.0
|
39.0
|
|
25
|
24.3
|
9.4
|
53.3
|
41.3
|
40.0
|
37.0
|
|
31.25
|
23.6
|
105
|
51.9
|
49.9
|
38.1
|
35.1
|
|
62.5
|
21.5
|
15.0
|
47.4
|
45.4
|
32.1
|
29.1
|
|
100
|
20.1
|
19.1
|
44.3
|
42.3
|
28.0
|
25.0
|
|
200
|
18.0
|
27.6
|
39.8
|
37.8
|
22.0
|
19.0
|
|
250
|
17.3
|
31.1
|
38.3
|
36.3
|
20.0
|
17.0
|
|
300
|
16.8
|
34.3
|
37.1
|
35.1
|
18.5
|
15.5
|
|
500
|
15.2
|
45.3
|
33.8
|
31.8
|
14.0
|
11.0
|
|
