U/UTP Cat6 Jelly filled Outdoor PE

U/UTP Cat6, 4 pairs, Jelly filled Outdoor, PE Jacket; 24AWG/23AWG BC; complied with EN50173, ANSI/TIA-568.2-D, ISO/IEC11801

Detailed description

Description:

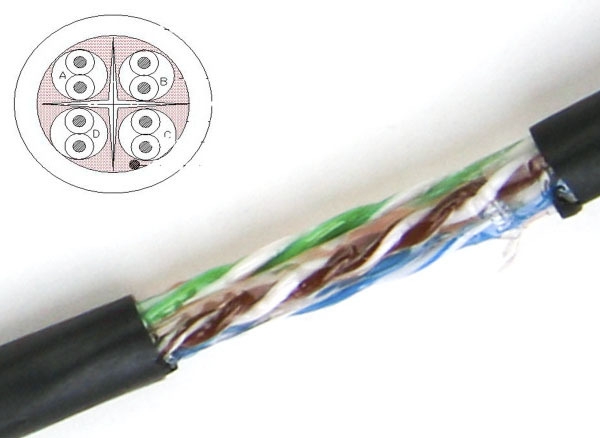

Unshielded Copper cable, 4 pairs, category 6, Jelly Filled Outdoor PE, solid
Application: horizontal wiring in LAN
Cable is used for outdoor installation

Technical characteristics:

Conductor: annealed bare copper 24AWG/23AWG
Identification:
   - Blue-White/Blue,
   - Orange-White/Orange,
   - Green-White/Green,
   - Brown-White/Brown
4 twisted pairs with spacer (HDPE)
Jelly filled inside
Jacket: PE
Outer cable diameter: 5.8±0.3 mm
Minimum bend radius: 8xO while installation, 6xO while vertical cabling, 4xO while horizontal cabling
Standard package: 305m(1000ft)

Frequency, MHz	RL	Attenuation, dB	NEXT, dB	PSNEXT, dB	ELFEXT, dB	PSELFEXT, dB
Electrical characteristics

1.0	20.0	2.4	74.3	72.3	67.8	64.8
4.0	23.0	3.8	65.3	63.3	55.8	52.8
8.0	24.5	5.3	60.8	58.8	49.7	46.7
10.0	25.0	6.0	59.3	57.3	47.8	44.8
16.0	25.0	7.6	56.3	54.3	43.7	40.7
20.0	25.0	8.5	54.8	52.8	41.8	38.8
25.0	24.3	9.5	53.3	51.3	39.8	36.8
31.25	23.6	10.7	51.9	49.9	37.9	34.9
62.5	21.5	15.4	47.4	45.4	31.9	28.9
100.0	20.1	19.8	44.3	41.3	27.8	24.8
200.0	18.0	29.0	39.8	37.8	21.8	18.8
250.0	17.3	32.8	38.3	36.3	19.8	16.8

Conductor resistance at 20°C (68°F)				9.38 Ohm/100 m (2.9 Ohm/100 ft)
DC Resistance Unbalance				5%
Pair-to-Ground Capacitance Unbalance				330 pF/100 m (101 pF/100 ft)
Impedance 0.772-100 MHz				85-115 Ohm
Mutual Capacitance				5.6 nF/m (1.7 nF/ft)
Spark Test				2.5 kV
