U/FTP CAT6A 2x4P 23AWG LSZH DUPLEX CABLE

U/FTP Cat6A, DUPLEX 2x4 pairs, PVC/LSOH Jacket; CPR-Eca, Dca, Cca, B2ca grade; 23AWG BC; complied with EN50173, ANSI/TIA568.2-D, ISO/IEC11801

Detailed description

Description:

Shielded Copper cable, DUPLEX 2x4 pairs, Category 6A, solid
2x4 separately foil-shielded pairs
Cable is used for indoor installation

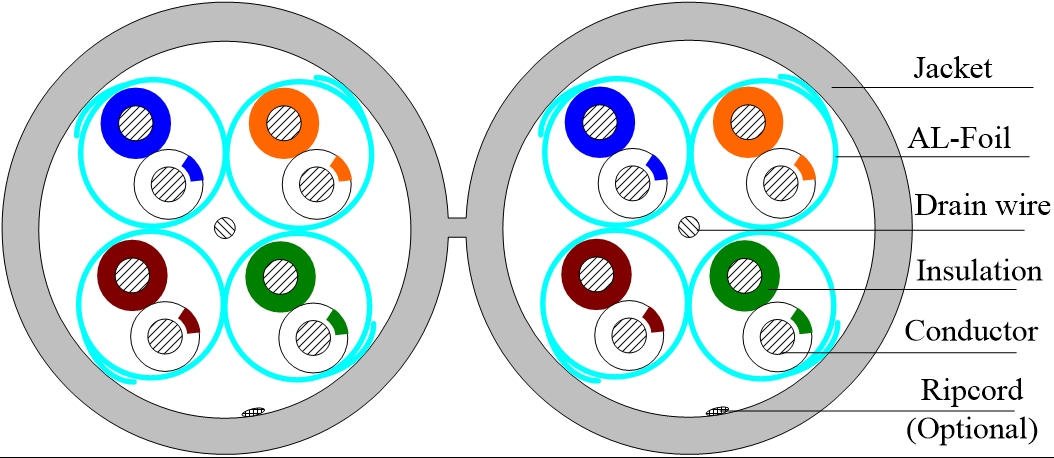

Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: Foam PE, film-porous-film structure
The cable jacket: LSZH(CPR-Eca, Dca, Cca, B2ca)
Drain-wire Material: Tinned Copper
Shield: every pair is separately shielded with polyester aluminum foil, which covers 100% of twisted pair

Technical characteristics:

Conductor diameter: 23AWG
Outer cable diameter: (7.20±0.30)X(14.8±0.60) mm
Operating temperature: -30°C – +70°C (+22°F – +158°F)
Standard package: 305m (1000 ft)

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

20.0

2.0

74.3

72.3

68.0

65.0

23.0

3.8

65.3

63.3

56.0

53.0

24.5

5.3

60.8

48.8

49.9

46.9

25.0

5.9

59.3

57.3

48.0

45.0

25.0

7.5

56.2

54.2

43.9

40.9

25.0

8.4

54.8

52.8

42.0

39.0

24.3

9.4

53.3

41.3

40.0

37.0

31.25

23.6

105

51.9

49.9

38.1

35.1

62.5

21.5

15.0

47.4

45.4

32.1

29.1

100

20.1

19.1

44.3

42.3

28.0

25.0

200

18.0

27.6

39.8

37.8

22.0

19.0

250

17.3

31.1

38.3

36.3

20.0

17.0

300

16.8

34.3

37.1

35.1

18.5

15.5

500

15.2

45.3

33.8

31.8

14.0

11.0
