110302. U/FTP Cat6A

U/FTP Cat6A, 4 pairs, PVC/PE/LSOH Jacket; 4×2×0.575 BC + OD 1.35 Foam PE + Pimf + Rip Cord + OD 7.4 LSOH; 500Mhz, complied with EN50173,TIA/EIA568C.2, ISO11801
Detailed description
Description:

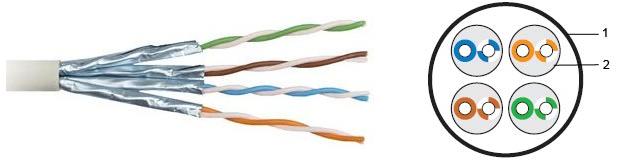

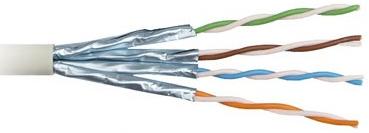

Shielded Copper cable, 4 pairs, Category 6A, solid
4 separately foil-shielded pairs
Cable is used for indoor installation and unshielded systems

Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: PE, film-porous-film structure
The cable jacket: FR-PVC
Shield: every pair is separately shielded with polyester aluminum foil, which covers 100% of twisted pair

Technical characteristics:

Conductor diameter: 0.57 ± 0.01mm (0.022" ± 0.004") (23 AWG)
Insulated conductor diameter: 1.43 mm (0.056")
Outer cable diameter: 8 mm (0.31")
Jacket thickness: 0.5 mm (0.019")
Pulling strength: 130 N maximum
Minimum bend radius: 50 mm (1.97")
Repeated bending: 80 cycles
Rip cord has a breaking strength of 10 kg (98 N)
Operating temperature: -30°C – +70°C (+22°F – +158°F)
Weight per 1000 ft (304.8 m): 16.8 kg (37 lbs)
Standard package: 500 m (1640 ft)

Electrical characteristics

Frequency, MHz RL Attenuation, dB NEXT, dB PSNEXT, dB ELFEXT, dB PSELFEXT, dB
1
20.0
2.0
74.3
72.3
68.0
65.0
4
23.0
3.8
65.3
63.3
56.0
53.0
8
24.5
5.3
60.8
48.8
49.9
46.9
10
25.0
5.9
59.3
57.3
48.0
45.0
16
25.0
7.5
56.2
54.2
43.9
40.9
20
25.0
8.4
54.8
52.8
42.0
39.0
25
24.3
9.4
53.3
41.3
40.0
37.0
31.25
23.6
105
51.9
49.9
38.1
35.1
62.5
21.5
15.0
47.4
45.4
32.1
29.1
100
20.1
19.1
44.3
42.3
28.0
25.0
200
18.0
27.6
39.8
37.8
22.0
19.0
250
17.3
31.1
38.3
36.3
20.0
17.0
300
16.8
34.3
37.1
35.1
18.5
15.5
500
15.2
45.3
33.8
31.8
14.0
11.0
