120410. NB-RRU 2 Core Waterproof Jumper

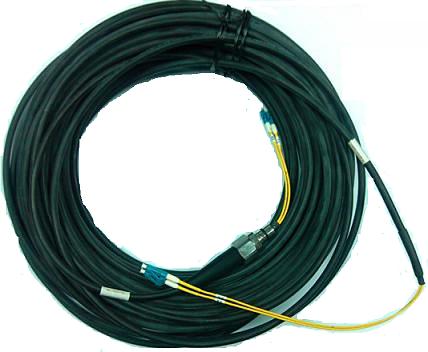

NB-RRU 2 Core Waterproof Jumper

Detailed description

Type: FC, SC, LC, etc.
Insertion Loss: ＜0.3dB
Return Loss: ≥50dB (PC), ≥60dB (APC)
Waterproof (Level IP68), 100N tensile strength, good corrosion resistance with traction protection, easier installation.

Items		LED Source		Test Result
Optical Performance	Insertion Loss	1310mm	≤0.3dB	NA
Optical Performance	Return Loss	1310mm	NA	≥50dB(PC) ≥60dB(APC)
Mechanical Performance	Interchangeability	Random connection	△＜0.2dB	△＜0.5dB
	Vibration	5-50Hz, 1.5mm Vibration Amplitude	△＜0.2dB	△＜0.5dB
	Tensile Strength	6kg	△＜0.2dB	△＜0.5dB
Environmental Performance	High temperature	+85℃, 96H	△＜0.2dB	△＜0.5dB
	Low temperature	-40℃, 96H	△＜0.2dB	△＜0.5dB
	Temperature Cycling	-40℃~+85℃ 5Cysles	△＜0.2dB	△＜0.5dB
	Humidity	+40℃, 90%~95%, 96H	△＜0.2dB	△＜0.5dB
