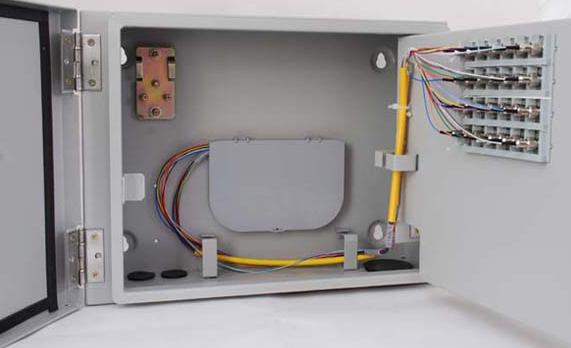

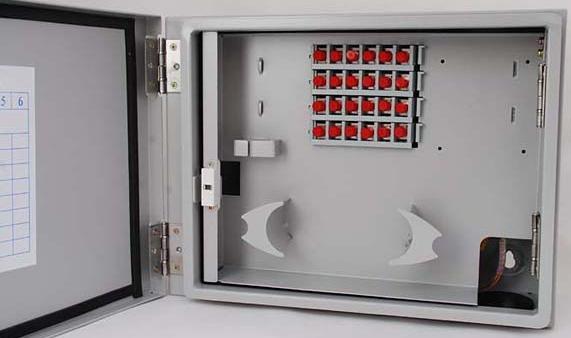

120308. Fiber Optic Cable Distribution Box (Metallic)

Fiber Optic Cable Distribution Box is an access device for connecting backbone cable and distribution cable installed either indoor or outdoor. Fiber optic cables, FTTH cables and splitters are introduced, fixed and connected in the box. There are indoor type and outdoor type distribution boxes; indoor type usually locates in the corridor or weak current well while the outdoor type locates on wall or poles. It can also be divided into plastic type and metallic type according to material.

Detailed description

Features

· Could alter to either fiber optical distribution box or fiber division box according to configuration changes

· Could install box-type optical splitter

· Optional distribution board with cables hierarchical management

· Possesses fastening devices of both bow-type cables and standard optical cables

· (Cold) welding and sc connector are suitable for optical distribution cable

· Finely designed cable routing guarantees curvature radius of cable and fiber

Ordering Guide

NO.	Type	Dimention (mm) HWD	Description
1	GPX910-FJN-24a	270360120	24 ports，1 set of 2：16 splitter optional, indoor type
2	GPX910-FJN-36a	320360120	32 ports，1 set of 2：32 splitter optional, indoor type
3	GPX910-FJN-48a	370360120	48 ports，1 set of 2：32 splitter optional, indoor type
4	GPX910-FJN-72a	320470150	72 ports，1 set of 2：64 splitter optional, indoor type
5	GPX910-FJW-24a	270360120	24 ports，1 set of 2：16 splitter optional, outdoor type
6	GPX910-FJW-36a	320360120	32 ports，1 set of 2：32 splitter optional, outdoor type
7	GPX910-FJW-48a	370360120	48 ports，1 set of 2：32 splitter optional, outdoor type
8	GPX910-FJW-72a	320470150	72 ports，1 set of 2：64 splitter optional, outdoor type
