120805. Micro-encapsulated Optical Splitter
  • 120805. Micro-encapsulated Optical Splitter

120805. Micro-encapsulated Optical Splitter

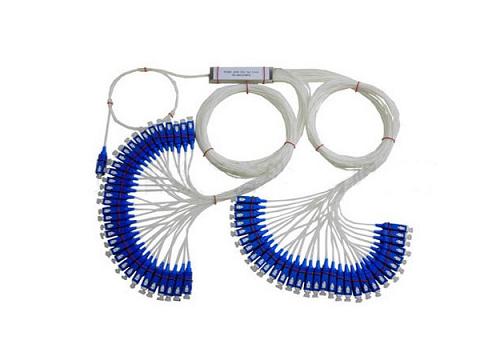

Planar Lightwave Circuit Splitter is an optical distribution device based on the waveguide technology. It is made of a silica plate with compact construction, can be operated on a wide range of wavelength with reliable performance and uniformity, particularly suitable for the connection from central office to the optical network termination in passive optical network, i.e. BPON, EPON, GPON, etc.
Detailed description

Applications
FTTx
Analog / Digital Passive Optical Network
Local Area Network / Wide Area Network / Metropolition Area Network
Cable TV Network



Product Performance for PLC Splitter
1xN Series

Parameters Unit 1 x 2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64
Operating Bandwidth nm 1260 —1610
Insertion Loss dB ≤ 4.1 ≤ 7.4 ≤ 10.7 ≤ 13.9 ≤ 17.2 ≤ 21.5
Polarization Dependent Loss dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.5
Loss Uniformity dB ≤ 0.8 ≤ 0.8 ≤ 1.0 ≤ 1.4 ≤ 1.6 ≤ 2.0
Return Loss dB ≥ 50
Directivity dB ≥ 55

2xN Series

Parameters Unit 2 x 2 2 x 4 2 x 8 2 x 16 2 x 32 2 x 64
Operating Bandwidth nm 1260 —1610
Insertion Loss dB ≤ 4.4 ≤ 7.6 ≤ 11.0 ≤ 14.8 ≤ 17.9 ≤ 21.5
Polarization Dependent Loss dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.5
Loss Uniformity dB ≤ 0.8 ≤ 1.0 ≤ 1.2 ≤ 1.5 ≤ 1.8 ≤ 2.0
Return Loss dB ≥ 50
Directivity dB ≥ 55

Package size as follows:

Micro-encapsulation PLC splitter package size

Type

1×2

1×4

1×8

1×16

1×32

1×64

Package size (mm)
(L × W × H)

60x7x4

60x7x4

60x7x4

70×12×4

80×20×6

100×40×6

Type

2×2

2×4

2×8

2×16

2×32

2×64

Package size (mm)
(L × W × H)

60x7x4

60x7x4

60x7x4

70×12×4

80×20×6

100×40×6
