111609. 24 Port CAT.5e UTP Unshielded Dual Patch Panel 19 Inch 1U
  • 111609. 24 Port CAT.5e UTP Unshielded Dual Patch Panel 19 Inch 1U

111609. 24 Port CAT.5e UTP Unshielded Dual Patch Panel 19 Inch 1U

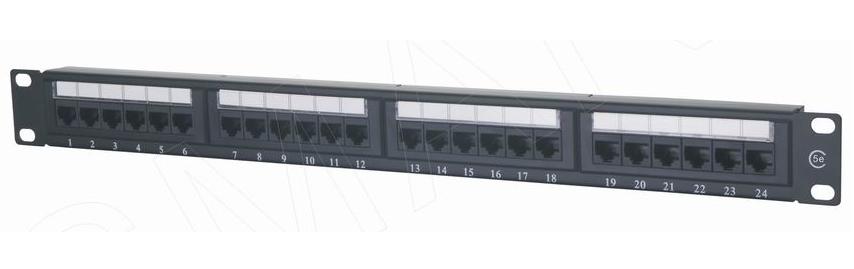

24 Port CAT.5e UTP Unshielded Dual Patch Panel 19 Inch 1U
Detailed description

Thickness of cold-rolled steel:1.5mm
Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N


Package:
10Boxes in a carton
Carton Measurement: L53CM*W32CM*H23
