110710.CAT7 RJ45 STP Plug

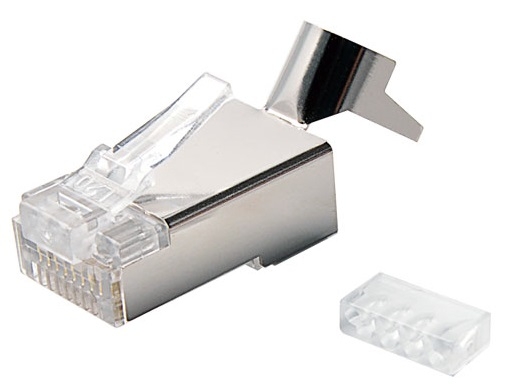

CAT7 RJ45 STP Plug
Detailed description

Material: pure copper plating nickel shell + clear PC + 50µ gold-plated pin
Bore diameter: 1.3MM, 1.45MM
Connector: RJ45
Weight: 3g
Color: silver
Packaging: loose packaging, polybag, gift box

Product specification
Cat7 FTP connector (2pcs) is complying with the ANSI/TIA 568-C.2 Cat7 standard.
Using the imported material, pure copper shell, the surface nickel plating, plastic shell is made of high quality transparent PC material, flame retardant conforms to UL94V-2, safe and reliable.
50µ gold-plated pin, antioxidant, anti-aging ability, impedance low, fork type structure, the connection is more reliable, more than 750times plug in/out, high quality, make contact with keystone jack attenuation fell to the lowest degree.
Adopt two piece suit type, in suppressing connector, can make it easier for cable core lock position, and the connector qualified is higher, more stable quality.
Wiring uses four-four designs, to the crosstalk between the line losses to minimum. Support T568A and T568B ports.
The tail used dovetail clamp design can better to fixed network, guarantee the stability of a high standard of network information transmission.
Enhanced shrapnel, the use of parallel design, feel is smooth and has good elasticity, resistance to bending, 180 degree foldable, unbreakable up to 30 more folding times.

Product application
Apply to the work area, the concentration of points, management room, and equipment between the subsystems of the applications of Cat7.
It is the connection of high density networks equipment and patch cord.

Material characteristic
Faller: phosphor copper, nickel plating before plating, height is 0.35MM
Shell: imported ROHS PC material, UL94V-2

Temperature range
Operating temperature: -20℃~+60℃

Application standard
Conform for: ISO/IEC 11801:2002, ANSI/TIA-568-C.2, EN50173:2002,
YD/T926.3-2001

Product characteristic
Imported material: pure copper plating nickel shells, the high quality of transparent PC material, 50µ gold-plated pin (height is 0.35MM).
Enhanced shrapnel has good elasticity, resistance to bending, 180 degree foldable, unbreakable up to 30 more folding tines.
Two-piece and dovetail design, produce higher quality cables, and the network information transmission are more stable.
