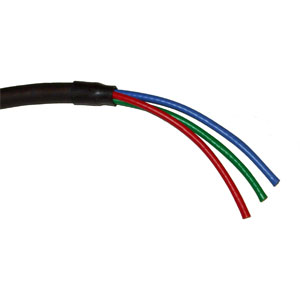

140102. Three Core Dual Shield Mini RG59

Three Core Dual Shield Mini RG59

Detailed description

Inner Conductor mm	3×23AWG BC
Insulation mm	3×2.59+/- 0.05 FPE
Shield	2 shield Bonded AL/P Foil 0.12/96TC(90%)Braid Mylar spiral coating
Filling	Cotton thread
Out Jacket	11.2mm+/-0.1 PVC
Impedance:	75 ± 3 ohms
Capacitance	16.3 pF/ft
Velocity of Propagation	83%
Nom. Delay:	1.22 ns/ft
Conductor Resistance	20.1 ohms/1000 ft
Shield DC Resistance	9.0 ohms/1000 ft
Return Loss	18 dB min., 5-850 MHz 16 dB min., 851-3000 MHz
NEC/(UL)	CM
Maximum Pulling Tension	36 lbs
Nominal Attenuation dB/100ft:
1 Mhz	0.39
10 Mhz	1.2
135 Mhz	3.81
270 Mhz	5.4
540 Mhz	7.7
750 Mhz	9.59
1000 Mhz	10.5
1500 Mhz	13
2250 Mhz	16
3000 Mhz	18.5
