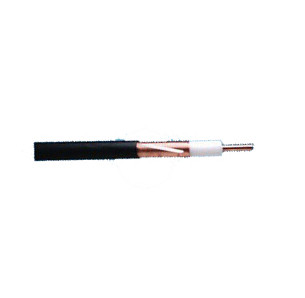

HLCAY-50-12(1/2") RadiatingLeaky
Detailed description
Cable Structure
Inner conductor ø mm 4.8 CCA(cladding)
Insulation ø mm 12.3 Foam PE
Outer conductor ø mm
(Overlapping CU foil )
12.7
Outer jacket mm 15.7 PE
Mechanical characteristics
Maximum tension(N) 1078
Single bending radius(mm) 125
Storage temperature(°C) –55 +80°C
Installation temperature(°C) –40 +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz 50.0
Voltage standing-wave ratio
800-1000 MHz 1.15
1700-2200 MHz 1.20
Peak power(KW) 40.0
Cut-off frequency(Ghz) 8.8
Attenuation constant(dB/100m)
150    MHz 3.30
450    MHz 6.60
900    MHz 9.50
1800  MHz 13.10
2200  MHz 14.90
2400  MHz 15.70
Coupling Loss(50%/95%,2m)
150    MHz 62/70
450    MHz 65/70
900    MHz 63/70
1800  MHz 63/71
2200  MHz 62/70
2400  MHz 61/69
