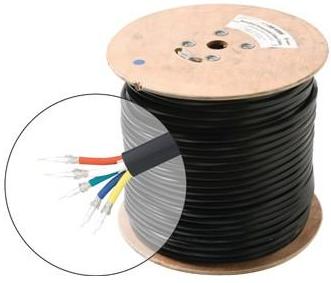

Five Core Dual Shield Mini RG59
Detailed description
Inner Conductor mm 5×23AWG BC
Insulation mm 5×2.59+/- 0.05 FPE
Shield 2 shield
Bonded AL/P Foil 0.12/96TC(90%)Braid
Mylar spiral coating
 Filling  Cotton thread
Out Jacket 13.8mm+/-0.1 PVC
Impedance:  75 ± 3 ohms
Capacitance 16.3 pF/ft
Velocity of Propagation 83%
Nom. Delay: 1.22 ns/ft
Conductor Resistance 20.1 ohms/1000 ft
Shield DC Resistance 9.0 ohms/1000 ft
Return Loss 18 dB min., 5-850 MHz
16 dB min., 851-3000 MHz
NEC/(UL) CM
Maximum Pulling Tension 36 lbs
Nominal Attenuation dB/100ft:
1 Mhz 0.39
10 Mhz 1.2
135 Mhz 3.81
270 Mhz 5.4
540 Mhz 7.7
750 Mhz 9.59
1000 Mhz 10.5
1500 Mhz 13
2250 Mhz 16
3000 Mhz 18.5
