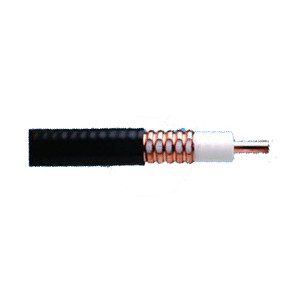

140502. HLCTAY-50-22(7/8) CouplingLeaky

HLCTAY-50-22(7/8") CouplingLeaky

Detailed description

Cable Structure
Inner conductor ø mm	9.0 CCA(cladding)
Insulation ø mm	22.3 Foam PE
Outer conductor ø mm (Corrugated CU tube & slot )	24.9
Outer jacket mm	27.5 PE
Mechanical characteristics
Maximum tension(N)	1440
Single bending radius(mm)	140
Storage temperature(°C)	–55 ～ +80°C
Installation temperature(°C)	–40 ～ +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz	50.0
Voltage standing-wave ratio
800-1000 MHz	1.15
1700-2200 MHz	1.20
Peak power(KW)	91.0
Cut-off frequency(Ghz)	5.2
Attenuation constant(dB/100m)
150 MHz	1.80
450 MHz	3.60
900 MHz	5.30
1800 MHz	7.60
2200 MHz	8.60
2400 MHz	9.00
Coupling Loss(50%/95%,2m)
150 MHz	66/76
450 MHz	72/80
900 MHz	74/85
1800 MHz	80/87
2200 MHz	77/88
2400 MHz	78/88
