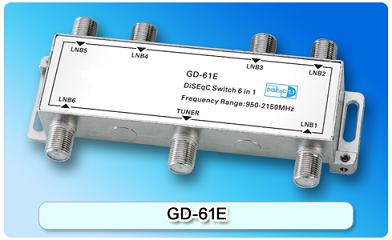

150532. GD-61E

Zinc die-cast housing, nickel-plated; Excellent quality component , professional circuit design and low loss; Excellent quality chip , professional program design and compatible with more types of satellite receiver; DiSEqC 1.1 control functions; Select one of six satellite signals through DiSEqC1.1 commands supplied.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component , professional circuit design and low loss
Excellent quality chip , professional program design and compatible with more types of satellite receiver
DiSEqC 1.1 control functions
Select one of six satellite signals through DiSEqC1.1 commands supplied from satellite receiver
Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2150(MHz)	Normal Working Voltage	12-20(V)
Insertion Loss	3(dB)	DC Power Consumption	10(mA)
Isolation	20(dB)	DC Max Power Passing	500(mA)
Return Loss	8(dB)	Impedance(all ports)	75(Ω)
