151417. GC-1073 5-1000MHz 3-way Splitter
  • 151417. GC-1073 5-1000MHz 3-way Splitter

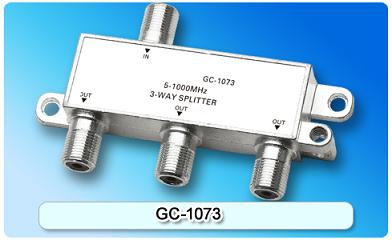

151417. GC-1073 5-1000MHz 3-way Splitter

Zinc die-cast housing, tin-plated; Light weight and compact size; Screening factor: 5-1000MHz≥120dB; Low insertion loss, high isolation, perfect performance index; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Light weight and compact size
  • Screening factor: 5-1000MHz≥120dB
  • Low insertion loss, high isolation, perfect performance index
  • All ports F-(f)connector,75 Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤5.5

≥30

≥20

40-470

≤5.5

≥25

≥20

470-860

≤6.0

≥25

≥20

860-1000

≤6.5

≥25

≥20
