151901. GC-AV02 Home Agile Modulator
  • 151901. GC-AV02 Home Agile Modulator

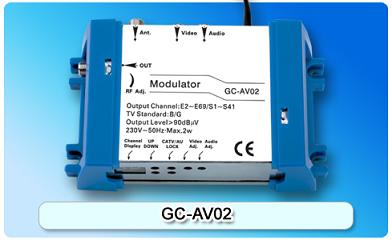

151901. GC-AV02 Home Agile Modulator

MCU controlled PLL, high accuracy and stability of visual carrier and audio subcarrier; Audio Subcarrier Selectable: 5.5MHz、6.0MHz、6.5MHz; With RF loop input and auto store when power outage; LED Channel number display; Double side band modulation for non-adjacent usage.
Detailed description

Features:

  • MCU controlled PLL, high accuracy and stability of visual carrier and audio subcarrier
  • Audio Subcarrier Selectable: 5.5MHz、6.0MHz、6.5MHz
  • With RF loop input and auto store when power outage
  • LED Channel number display
  • Double side band modulation for non-adjacent usage

Specifications

RF

VIDEO

Item

Specification

Item

Specification

Output Channel

VHFI:CH2~CH4.S1~S10
VHFIII:CH5~CH12.S11~S41.
UHF:CH21~CH69

Input Level

0.8Vp-p for 80%±10% modulation

RF Output Level

90dBuV Min.

Input Level Adj

0.4Vp-p ~ 0.8Vp-p

A/V Ratio

-15±2 dB

S/N Ratio

55dB

Visual Carrier Freq. Accuracy

±5KHz

Freq. Response

±2.5dB(50Hz to 4.2MHz)

Output Return Loss

14dB

Input Impedance

75Ω

Spurious Rejection

50dB





Output Impedance

75Ω





AUDIO

GENERAL

Item

Specification

Item

Specification

Freq. Deviation

±50KHz

Input Voltage

AC 230V 50Hz

Freq. Response

±2dB

Operation Temperature

-20℃ to+ 50℃

Input Impedance

600Ω
