151544. GC-1902 5-1000MHz 2-way Tap
  • 151544. GC-1902 5-1000MHz 2-way Tap

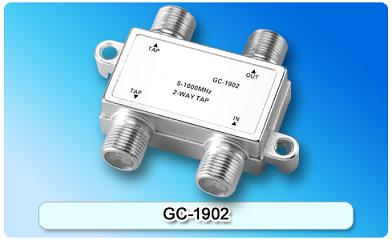

151544. GC-1902 5-1000MHz 2-way Tap

Zinc die-cast housing, brass-plated; Screening factor: 5-1000MHz≥100dB; Easy installation with two edge hole sites; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, brass-plated
  • Screening factor: 5-1000MHz≥100dB
  • Easy installation with two edge hole sites
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm

Specifications

Item

Frequency Range

8 10 12 14 16 18 20 22 24 27 30
Insertion Loss
(dB)
5-40(MHz) 3.5 2.5 1.5 1.5 1 1 0.8 0.8 0.8 0.8 0.8
40-470(MHz) 3.8 2.8 1.8 1.8 1.2 1.2 1 1 1 1 1
470-860(MHz) 3.8 2.8 2 2 1.2 1.2 1 1 1 1 1
860-1000(MHz) 4.2 3.2 2.2 2.2 1.5 1.5 1 1 1 1 1
Tap Loss Tolerance
(dB)
5-40(MHz) ±1.0
40-470(MHz) ±1.0
470-860(MHz) ±1.0
860-1000(MHz) ±1.5
Mutual Isolation
(dB)
5-40(MHz) 28 30 30 30 30 30 30 30 30 30 30
40-470(MHz) 28 30 30 30 30 30 30 30 30 30 30
470-860(MHz) 25 25 25 25 25 25 25 25 25 25 25
860-1000(MHz) 25 25 25 25 25 25 25 25 25 25 25
Reverse Isolation
(dB)
5-40(MHz) 33 28 30 30 35 35 40 40 40 40 42
40-470(MHz) 30 28 30 30 35 35 35 35 35 38 38
470-860(MHz) 30 26 28 28 33 33 35 35 35 38 38
860-1000(MHz) 28 23 25 25 25 26 30 30 30 35 35
Return Loss
(dB)
5-40(MHz) 20 20 20 20 20 20 20 20 20 20 20
40-470(MHz) 20 20 20 20 20 20 20 20 20 20 20
470-860(MHz) 18 18 18 18 18 18 18 18 18 18 18
860-1000(MHz) 18 18 18 18 18 18 18 18 18 18 18
