151112. SF-2800 Digtal Satellite Finder
  • 151112. SF-2800 Digtal Satellite Finder

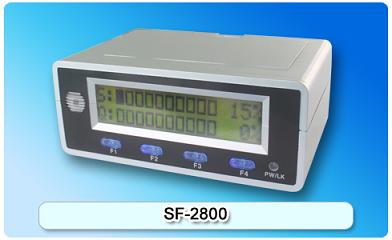

151112. SF-2800 Digtal Satellite Finder

Support DVB-S, DVB-S2; Multi standard demodulation & decoding; Use LCM to display the satellite signal strength and quality; Set up LO. of the LNB and the parameters of satellite TV, find satellite signal accurately; Built-in LCM backlight and controllable signal alert buzzer.
Detailed description

Features:

  • Support DVB-S, DVB-S2
  • Multi standard demodulation & decoding
  • Use LCM to display the satellite signal strength and quality
  • Set up LO. of the LNB and the parameters of satellite TV, find satellite signal accurately
  • Built-in LCM backlight and controllable signal alert buzzer
  • Battery or external power supply
  • Can update data through USB port

Specifications

Item

Specification

Item

Specification

Frequency Range

950-2150MHz

Operating Temperature

0℃ ~ + 40℃

Input Level Range

-65dBm~-25dBm

Input connector

F type

Symbol rate

1 to 45Msps

Impedance

75Ω

DiSEqC 1.0

Supported

DC power supply

DC 14V
