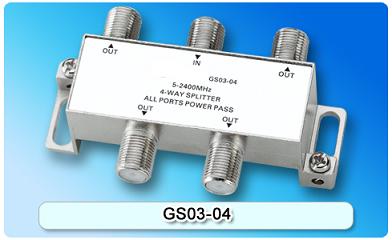

150814. GS03-04 SAT 4-Way Splitter
  • 150814. GS03-04 SAT 4-Way Splitter

150814. GS03-04 SAT 4-Way Splitter

Zinc die-cast housing, nickel-plated; Easy installation, capable of passing cable thru housing bottom; Screening factor: 5-2400MHz≥100dB; Micro-strip circuit design and perfect performance index; Indoor using ndoor using Designed for SATV/CATV; Power passing-24V 0.8A(MAX.).
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Easy installation, capable of passing cable thru housing bottom
  • Screening factor: 5-2400MHz≥100dB
  • Micro-strip circuit design and perfect performance index
  • Indoor using ndoor using Designed for SATV/CATV
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f)connector,75 Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤8.0

≥20

≥10

40-1000

≤8.5

≥22

≥12

1000-1750

≤9.0

≥22

≥12

1750-2400

≤10.5

≥20

≥10
