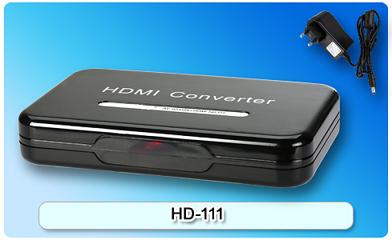

152804. HD-111 HDMI Converter

lConvert CVBS and L/R audio to HDMI、VGA and stereo audio; Enclose a remote control for entering in main menu and set the parameter of picture; Display the picture with different resolutions and field frequencies through HDMI, Resolutions up to 1080P@60Hz; Display the picture with different resolutions.

Detailed description

Features:

lConvert CVBS and L/R audio to HDMI、VGA and stereo audio
Enclose a remote control for entering in main menu and set the parameter of picture
Display the picture with different resolutions and field frequencies through HDMI, Resolutions up to 1080P@60Hz
Display the picture with different resolutions and field frequencies through VGA, Resolutions up to 1920*1080@60Hz
HDMI signal and VGA signal output synchronously
Compliant with HDMI 1.2 and HDCP 1.1
Support 24-bit color depth
Easy to install and simple to use

Specifications

Item	Specification
Product	AV to HDMI +VGA HD-111
Input signal	CVBS signal and L/R audio signal
Output signal	HDMI signal 、VGA signal and stereo audio signal
Output VGA/HDMI resolution	MOV(VGA)@60Hz,MOV(VGA)@75Hz,MON(SVGA)@60Hz,MON(SVGA)@75Hz ,MON(XGA)@60Hz,MON(XGA)@75Hz,MON(SXGA)@60Hz,MON(SXGA)@75Hz,1360768P@60Hz 1440900P@60Hz, 16801050P@60Hz, 16001200P@60Hz ,16801050P RB, 19201080P RB, SD(480P)@60Hz ,SD(576P)@50Hz, HD(720P)@60Hz, HD(720P)@50Hz,HD(1080i)@60Hz, HD(1080i)@50Hz, HD(1080P)@60Hz , HD(1080P)@50Hz
HDMI specification	HDMI V1.2 and HDCP complaint
Operation Temperature	0℃ to 70℃
Power Supply	5V 2A
Housing Material	ABS
Dimension	1509927mm
