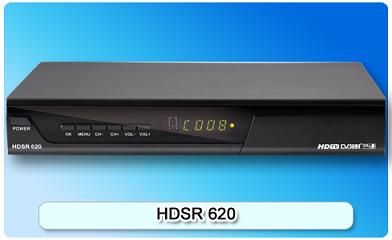

150113. HDSR 620

USB 2.0 for software update/PVR/media play back; Fully compliant with DVB-S and DVB-S2(MPEG 2/MPEG 4/ H.264); Full HD output in 720p, 1080i, 1080p; HDCP protection; Time shift supported with external hard drive disc; Multi-lingual OSD and user-friendly UI.

Detailed description

Features:

USB 2.0 for software update/PVR/media play back
Fully compliant with DVB-S and DVB-S2(MPEG 2/MPEG 4/ H.264)
Full HD output in 720p, 1080i, 1080p
HDCP protection
Time shift supported with external hard drive disc
Multi-lingual OSD and user-friendly UI
Parental Control, Teletext, EPG supported
Favorite Group supported
DiSEqC 1.0, 1.1, 1.2, USALS Compatible
Less than 0.5 Watt in standby

Specifications

DVB-S2 LNB I Input/Demodulation
Connector Type	F-Female 1 for LNB IN ， F-Female 1 for LOOP OUT
Input Frequency	950MHz-----2150MHz
Signal Input level	-65dBm ∽ -25dBm
Input Impedance	75Ohm
Demodulation Scheme	QPSK/8PSK: 1~55Msps
Signal compatibility	Support conversion for different video formats and frame rates
Data Service Port
Connector	USB
Data Protocol	USB2.0 interface
Power Supply
Type	Mode
Power consumption	Max20W
Adapter
AC input	100-240VAC@50/60Hz±5%
DC output	12V 1.5Amax
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	260mm * 180mm * 41mm
Front Panel
Key	POWER, MENU,OK,CH+, CH-,VOL+,VOL-
Indicator	LED Indicator for Power On/Off
Remote Control input	Infra-red receiver
Display	Option for 4 Digits 7-segment LED display
Rear Panel
Connector	1 * USB2.0 interface
	1 * SCART or 1* AV RCA6(YPbPr, CVBS, L/R) (Optical)
	2 * F connector for LNB IN and LOOP OUT
	1 * HDMI 1.3 interface up to 1080p
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±30°(horizontal)，±20°(vertical)
