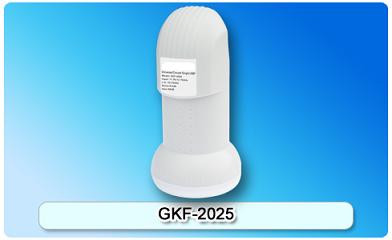

151034. GKF-2025 Ku-Band Dual Polarity Circular Single LNBF

Circular Ku-Band for Analog and Digital reception; Low noise figure; Low power consumption; Easy installation; High quality weather protection.
Detailed description

Features:

  • Circular Ku-Band for Analog and Digital reception
  • Low noise figure
  • Low power consumption
  • Easy installation
  • High quality weather protection

Specifications

Item Specification

Item

Specification
Input Frequency Range 11.70~12.75GHz Image Rejection 40dB(Min.)
Output Frequency Range 950~2000MHz Output VSWR 2.0:1(Max.)
Noise Figure 0.6dB(Typ.) Output Power 0dBm (Min.)(at 1dB gain compression)
Conversion Gain 60dB(Typ.) Connector Type 75Ω Female Connector
Gain Flatness ±0.5dB/26MHz DC Current Consumption 90mA(Typ.)
L.O. Frequency 10.75GHz POL. Switching Voltage (RHCP)11.0-14.0VDC
(LHCP)16.0-20VDC
L.O. Frequency Stability ±1.0MHz(Max.)@+25℃
±2.0MHz(Max.)@-30℃~+70℃
Operating Temperature -30℃~+70℃
L.O. Phase Noise -50dBc/Hz@1KHz
-75dBc/Hz@10KHz
-95dBc/Hz@100KHz
