150675. MS-13A Cascadable Amplifier, 13 In Series
  • 150675. MS-13A Cascadable Amplifier, 13 In Series

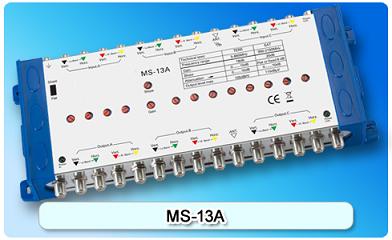

150675. MS-13A Cascadable Amplifier, 13 In Series

Gain adjustable design; Can compensate the loss in your distribution system; External 20V, 3000mA DC power supply; Red LED for power in, yellow LED for power link.
Detailed description

Features:

  • Gain adjustable design
  • Can compensate the loss in your distribution system
  • External 20V, 3000mA DC power supply
  • Red LED for power in, yellow LED for power link

Specifications

Item

Specification

Item

Specification

Frequency Range ANT

5-860(MHz)

Output Level ANT

105(dBuV)

Frequency Range SAT

950-2150 (MHz)

Output Level SAT

110(dBuV)

Gain SAT

20(dB)

Noise Figure

6(dB)

Gain ANT

18(dB)

DC Power Consumption

350(mA)

Slope Control SAT

0/6(dB) selectable

Supply Voltage(VDC)

20V(±1)3000mA

Slope Control ANT

0-10(dB)

Temperature Range

-20 ℃ -60 ℃

Return Loss

10(dB)

Impedance(all ports)

75(Ω)

Gain Adjustable Range

0-10(dB)









Connectors:“F”type female
