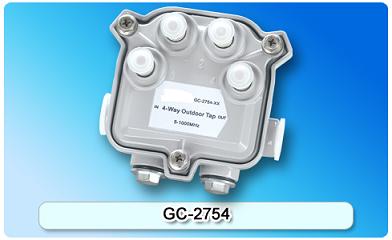

151704. GC-2754 Outdoor 4-Way Tap
  • 151704. GC-2754 Outdoor 4-Way Tap

151704. GC-2754 Outdoor 4-Way Tap

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft; Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed; With isolation wire netting mounting to avoid RFI and good screening factor; Super-compact size, light weight and easy to attach.
Detailed description

Features:

  • Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft
  • Aluminum alloy housing with anti-corrosive paint and neoprene weather sealed
  • With isolation wire netting mounting to avoid RFI and good screening factor
  • Super-compact size, light weight and easy to attach
  • 75Ohm,5/8〃-24UNEF Available to configure a KS-F rotary joint
  • Available to supply 5-1000MHz
  • IN-OUT current passing :6A AC/DC

Specifications

Item

Frequency Range

11

14

17

20

23

27

Insertion Loss
(dB)

5-40(MHz)

≤3.5

≤1.5

≤1.0

≤1.0

≤0.8

≤0.8

40-470(MHz)

≤4.2

≤2.5

≤1.5

≤1.5

≤1.0

≤1.0

470-860(MHz)

≤4.5

≤2.8

≤1.8

≤1.8

≤1.2

≤1.2

860-1000(MHz)

≤4.8

≤3.2

≤2.0

≤2.0

≤1.5

≤1.5

Tap Loss Tolerance
(dB)

5-40(MHz)

±1.0

40-470(MHz)

±1.2

470-860(MHz)

±1.5

860-1000(MHz)

±1.5

Mutual Isolation
(dB)

5-40(MHz)

≥27

≥27

≥30

≥30

≥30

≥30

40-470(MHz)

≥30

≥30

≥30

≥30

≥30

≥30

470-860(MHz)

≥25

≥25

≥25

≥25

≥25

≥25

860-1000(MHz)

≥25

≥23

≥23

≥25

≥25

≥25

Reverse Isolation
(dB)

5-40(MHz)

≥22

≥25

≥25

≥25

≥30

≥24

40-470(MHz)

≥24

≥28

≥28

≥30

≥32

≥32

470-860(MHz)

≥22

≥24

≥25

≥28

≥30

≥30

860-1000(MHz)

≥22

≥22

≥22

≥24

≥25

≥25

Return Loss
(dB)

5-40(MHz)

≥18

≥18

≥18

≥18

≥18

≥18

40-470(MHz)

≥20

≥20

≥20

≥20

≥20

≥20

470-860(MHz)

≥17

≥17

≥17

≥17

≥17

≥17

860-1000(MHz)

≥17

≥17

≥17

≥17

≥17

≥17
