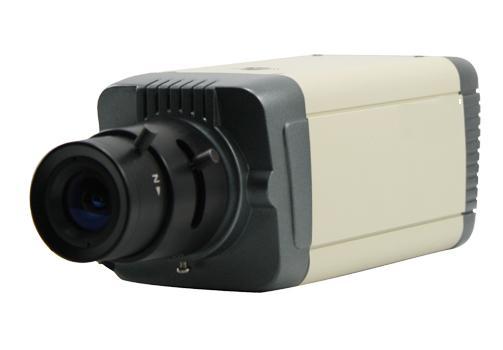

130505. Color CCD Camera

Color CCD Camera

Detailed description

Features

1. Electronic shutter speed changeable
2. BLC area selectable
3. AGC changeable
4.White balance mode selectable
5.Color, Contrast Ratio & Sharpness adjustable
6. With mirror function
7. Motion detection on/off

Parameters

Model	DF-5748CN	DF-5752CN
Image Sensor	1/ 3” Sony super HAD CCD
Pixels(H*V)	P:752(H)×582 (V)	P:752(H)×582 (V)
	N:768(H)×494 (V)	N:768(H)×494 (V)
Scanning System	PAL/NTSC
Horizontal Resolution	480TVL	540TVL
Synchronization	Internal
Minimum Illumination	0.1Lux/F1.2
Backlight Compensation	ON/OFF Switchable
Electronic Shutter	1/50(1/60)~100,000 Sec.
AGC	ON/OFF Switchable
White Balance	Automatic

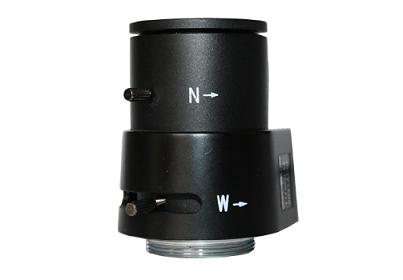

Lens	C/CS
S/N Ratio	≥48dB
Gamma Correction	0.45
Video Output	1.0Vp-p/ 75Ω
Operation Temperature	- 20℃ ~ 50℃
Power Supply	DC 12V, 1,000mA
Dimensions (mm)	128×62×59mm
Weight (g)	381g
