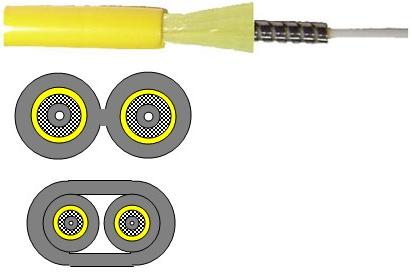

120109. Duplex & Simplex Armored

Steel armored protect the optical fiber, High tensile strength, pressure resistance, re-twist resistance, prevents bite by the rodents
Detailed description
Description:

Optical fiber follows ITU spec.
Color codes: Yellow(SM); Orange (MM).
Steel armored protect the optical fiber
High tensile strength, pressure resistance, re-twist resistance, prevents bite by the rodents.
Meet UL(OFNR and OFNP) flame retardant rating
Optical testing follows ITU, IEC and EIA/TIA-FOTP Quality approved by UL

Application:

The duplex tight buffer cable can be directly assembled with connectors as pigtail or patch-cord
Multiple simplex tight buffer fibers can be bundled as the fan-out or breakout cable for indoor wiring
PVC, LSZH and Plenum outer sheath are available

Mechanical & Environmental characteristics:

ITEM CHARACTERISTICS
Operation temperature -20℃~+60℃
Storage temperature -40℃~+85℃
Riser UL/cUL Rated Type OFNR/OFN FT4
Plenum UL/cUL Rated Type OFNP/OFN FT6
Jacket Material PVC or LSZH or Plenum

Part
Number
Fiber
Count
Outside
Diameter
(mm)
T.B
Diameter
(mm)
Cable
Weight
(kg/km)
Tensile Load
Crush Load
Bend Radius
S (N)
L (N)
S (N)
L (N)
S (mm)
L (mm)
H30SAXXR-CL
1
2.8
0.9
5.2
750
300
1000
200
20D
10D
H30SAXXR-CL
1
3.0
0.9
6.5
750
300
1000
200
20D
10D
H24SAXXR-CL
2
2.4*2
0.9
9.4
750
300
1000
200
20D
10D
H28SAXXR-CL
2
2.8*2
0.9
12.5
750
300
1000
200
20D
10D
H30SAXXR-CL
2
3.0*2
0.9
14.0
750
300
1000
200
20D
10D
H30OAXXR-CL
2
7.2*4.2
0.9
18.5
1000
500
1200
600
20D
10D

Note: H denotes Haowave logo; XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; 24 denotes cable diameter ; SA denotes simplex armour ; ZA denotes zipcord duplex armour ; R denotes Riser ( L: LSZH; P: Plenum) ; CL denotes the color of outer sheath.

Optical Characteristics:

Glass Type
62.5/125um
62.5/125um
50/125um
50/125um
50/125um
SM(G652.D)
Grade B
Grade A
Grade B
Grade A
OM3
P/N Code(X)
62B
62A
50B
50A
OM3
09
Operating
Wavelength
850/1300nm
850/1300nm
850/1300nm
850/1300nm
850/1300nm
1310/1550nm
Bandwidth
(MHz.km)
160/500
200/600
200/500
400/800
1500/500
_
Attenuation
(dB/km)
3.50/1.50
3.00/1.00
3..50/1.50
3.00/1.00
2.70/0.80
0.45/0.30
Link Length
For 1000M
200/500
275/550
500/550
550/550
1000^4/600
_
Link Length
For 10G
——
——
——
——
300/
_

Fiber Colour Code:

BL- Blue BR- Brown RE- Red PU- Purple
OR- Orange GY- Grey BK- Black PI- Pink
GR- Green WH- White YE- Yellow AQ- Aqua

Note:



1000



1. The colour identification of the buffer layer complies with the standard colour identification set in GB13993.3-2001 Standard
2. S: short term; L: long term; T.B: tight buffer
3. Crush load: N/100mm; D: cable diameter
