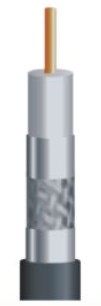

140207. RG 6 Tri-Shield

RG 6 Tri-Shield

Detailed description

Cable Structure
Inner conductor ø mm	1x1.02 Solid BC or CCS
Insulation ø mm	4.57 Foam PE
Shield	3 Shield Al foil min 59% Al Braid Al foil
Outer jacket	6.15 PVC -40°C/+75°C RoHS
Electrical characteristics
Impedance (Ohm)	75±3
Min. Velocity Propagation	82%
Norminal Atten at 20°(dB/100m)
5 MHz	1.90
55 MHz	5.25
211 MHz	10.00
250 MHz	10.82
300 MHz	11.84
400 MHz	13.61
500 MHz	15.29
750 MHz	18.54
1000 MHz	21.49
1450 MHz	26.01
1750 MHz	28.50
2250 MHz	32.31
3000 MHz	38.54
Min.Structual Return Loss
5-1000 MHz	>21dB
1000-2000 MHz	>18dB
2000-3000 MHz	>15dB
