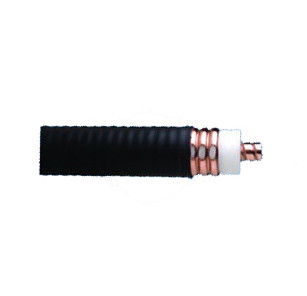

HLHTAY-50-42(1-5/8") CouplingLeaky
Detailed description
Cable Structure
Inner conductor ø mm 17.3 Helix wrinkles CU tube
Insulation ø mm 42.5
Outer conductor ø mm
(Corrugated CU tube & slot )
46.5
Outer jacket mm 49.5
Mechanical characteristics
Maximum tension(N) 3234
Single bending radius(mm) 280
Storage temperature(°C) –55 +80°C
Installation temperature(°C) –40 +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz 50.0
Voltage standing-wave ratio
800-1000 MHz 1.15
1700-2200 MHz 1.20
Peak power(KW) 320.0
Cut-off frequency(Ghz) 2.8
Attenuation constant(dB/100m)
150    MHz 0.80
450    MHz 2.00
900    MHz 2.70
1800  MHz 4.40
2200  MHz 5.10
2400  MHz 5.60
Coupling Loss(50%/95%,2m)
150    MHz 72/84
450    MHz 79/85
900    MHz 79/85
1800  MHz 80/86
2200  MHz 80/86
2400  MHz 82/88
