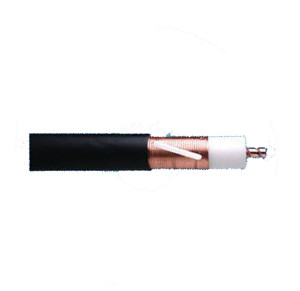

HLHTY-50-42(1-5/8") RadiatingLeaky
Detailed description
Cable Structure
Inner conductor ø mm 17.3 Helix wrinkles CU tube
Insulation ø mm 42.8
Outer conductor ø mm
(Overlapping CU foil )
43.2
Outer jacket mm 47.6
Mechanical characteristics
Maximum tension(N) 1700
Single bending radius(mm) 510
Storage temperature(°C) –55 +80°C
Installation temperature(°C) –40 +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz 50.0
Voltage standing-wave ratio
800-1000 MHz 1.15
1700-2200 MHz 1.20
Peak power(KW) 320.0
Cut-off frequency(Ghz) 2.8
Attenuation constant(dB/100m)
150    MHz 0.80
450    MHz 2.00
900    MHz 2.70
1800  MHz 4.40
2200  MHz 5.10
2400  MHz 5.60
Coupling Loss(50%/95%,2m)
150    MHz 73/84
450    MHz 75/86
900    MHz 70/81
1800  MHz 60/69
2200  MHz 63/70
2400  MHz 66/73
