140509. HCAHY-50-5(1/4

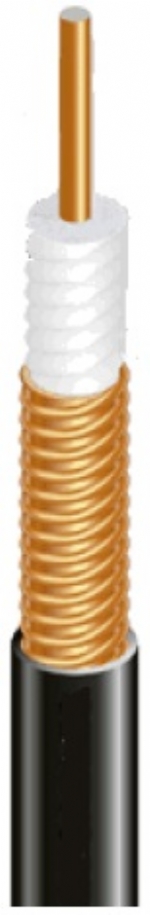

HCAHY-50-5(1/4" S) SuperFlexible

Detailed description

Cable Structure
Inner conductor ø mm	1.9±0.02 CCA(cladding)
Dielectric Diameter ø mm	4.85±0.20 Foam PE
Outer conductor ø mm (Helix wrinkles CU tube)	6.4±0.15
Outer jacket mm	7.50±0.20 PE
Mechanical and Environmental Specifications
Minimum Bending Radius
Single Bend，mm(in)	12(0.5)
Repeated Bends，mm(in)	25(1.0)
Number of Bends	15
Storage temperature(°C)	-40 to +80
Installation temperature(°C)	-30 to +60
Operating Temperature ，℃	-40 to +70
Cable Weight，kg/m (Ib/ft)	0.074 (0.05)
Electrical characteristics
Capacitance，pF/m(ft)	83 (25.3)
Impedance，ohms	50±2
Velocity，%	83
Insulation Resistance，M􀈊·km	＞5000
Cut-off Frequency，(GHz)	20.4
Insulation Voltage，kV	2.0
Inner Conductor DC Resistance，􀈊/km	≤10.45
Outer Conductor DC Resistance，􀈊/km	≤7.02
Intermodulation, 3rd Order(ref.), dBc	-155
Jacket Spark，kV	3.0
VSWR
800~1000MHz	≤1.20
1700~1900MHz	≤1.20
1900~2200MHz	≤1.25
2300~2700MHz(ref.)	≤1.25
Attenuation	(max)(dB/100m)
150 MHz	8.07
450 MHz	14.22
800 MHz	19.22
900 MHz	20.45
1800 MHz	29.60
2000 MHz	31.33
2200 MHz	32.99
2400 MHz	34.59
2500 MHz	35.37
2700 MHz	36.89
3000 MHz	39.08
